產品規格

單位

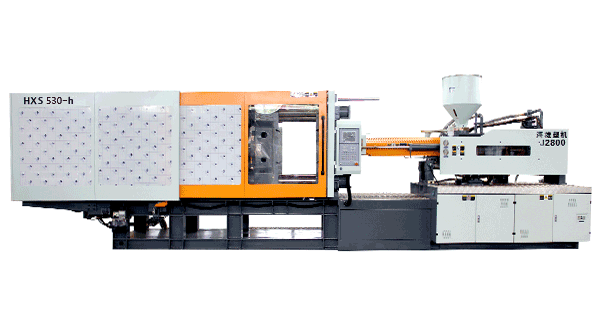

HXS/h530

注射裝置Injection Unit

A組A

A組B

A組C

B組A

B組B

B組C

螺桿直徑Screw diameter

Mm

75

80

85

60

65

70

螺桿長徑比Screw L/D ratio

L/D

21.3

20

18.8

22.7

21

19.5

理論注射容積Injection capacity in theory

cm³

1634

1860

2099

905

1062

1232

注射重量Injection weight（ps）

g

1495

1701

1921

841

988

1145

oz

52.7

60.0

67.7

29.6

34.8

40.4

注射壓力Injection pressure

MPa

191

168

148

190

162

140

注射速率Injection velocity

mm/s

382

435

491

258

300

348

塑化能力?Plasticizing capacity

g/s

52

57

62

40

48

57

螺桿轉速?Screw speed

rpm

150

180

合模裝置Clamping Unit

?

合模力Clamping force

kN

5300

移動模板行程Moving mould-plate stroke

mm

830

大模厚?Max.Mould height

Mm

830

小模厚Min.Mould height

mm

330

拉桿有效間距?Space between tie-bars

mm

860*810

液壓頂出力Hydraulic ejector force

kN

181

液壓頂出行程?Hydraulic ejector stroke

mm

230

頂出點數Ejector number

n

17

其他Other

?

油泵壓力Pump pressure

MPa

16

普通電機/驅動功率?Motor/Driving power

kW

55/30*2

加熱功率?Heating capacity

kW

41.9

外形尺寸?Machine dimension

m

8.81*2.05*2.5

機器重量?Machine weight

t

22

油箱容積?Oil tank capacity

L

1156
